F系列-FS2404
發(fā)布日期:2024-01-12 瀏覽次數(shù):526
Unit: inch | ||||||||

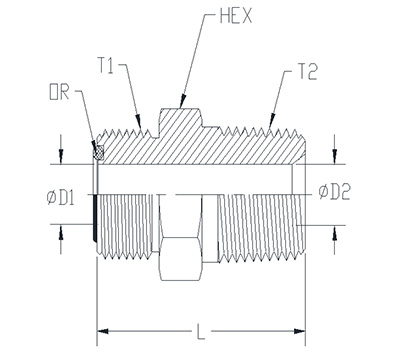

ITEM | P/N | HEX | T1 | T2 | L | D1 | D2 | OR |
1 | FS2404-04-02 | 0.625 | 9/16-18 UNF | 1/8-27 NPTF | 1.080 | 0.172 | 0.188 | OG-04 |
2 | FS2404-04-04 | 0.625 | 9/16-18 UNF | 1/4-18 NPTF | 1.260 | 0.172 | 0.281 | OG-04 |
3 | FS2404-04-06 | 0.750 | 9/16-18 UNF | 3/8-18 NPTF | 1.260 | 0.172 | 0.406 | OG-04 |
4 | FS2404-04-08 | 0.875 | 9/16-18 UNF | 1/2-14 NPTF | 1.500 | 0.172 | 0.531 | OG-04 |
5 | FS2404-06-02 | 0.750 | 11/16-16 UNF | 1/8-27 NPTF | 1.160 | 0.264 | 0.188 | OG-06 |
6 | FS2404-06-04 | 0.750 | 11/16-16 UNF | 1/4-18 NPTF | 1.340 | 0.264 | 0.281 | OG-06 |
7 | FS2404-06-06 | 0.750 | 11/16-16 UNF | 3/8-18 NPTF | 1.340 | 0.264 | 0.406 | OG-06 |
8 | FS2404-06-08 | 0.875 | 11/16-16 UNF | 1/2-14 NPTF | 1.540 | 0.264 | 0.531 | OG-06 |
9 | FS2404-08-04 | 0.875 | 13/16-16 UNF | 1/4-18 NPTF | 1.450 | 0.378 | 0.281 | OG-08 |
10 | FS2404-08-06 | 0.875 | 13/16-16 UNF | 3/8-18 NPTF | 1.450 | 0.378 | 0.406 | OG-08 |
11 | FS2404-08-08 | 0.875 | 13/16-16 UNF | 1/2-14 NPTF | 1.640 | 0.378 | 0.531 | OG-08 |
12 | FS2404-08-12 | 1.062 | 13/16-16 UNF | 3/4-14 NPTF | 1.690 | 0.378 | 0.719 | OG-08 |
13 | FS2404-08-16 | 1.312 | 13/16-16 UNF | 1-11.5 NPTF | 1.890 | 0.378 | 0.938 | OG-08 |
14 | FS2404-10-08 | 1.062 | 1-14 UNS | 1/2-14 NPTF | 1.820 | 0.484 | 0.531 | OG-10 |
15 | FS2404-10-12 | 1.062 | 1-14 UNS | 3/4-14 NPTF | 1.850 | 0.484 | 0.719 | OG-10 |
16 | FS2404-10-16 | 1.312 | 1-14 UNS | 1-11.5 NPTF | 1.950 | 0.484 | 0.938 | OG-10 |
17 | FS2404-12-08 | 1.250 | 1-3/16-12 UN | 1/2-14 NPTF | 1.940 | 0.609 | 0.531 | OG-12 |
18 | FS2404-12-12 | 1.250 | 1-3/16-12 UN | 3/4-14 NPTF | 1.940 | 0.609 | 0.719 | OG-12 |
19 | FS2404-12-16 | 1.312 | 1-3/16-12 UN | 1-11.5 NPTF | 2.060 | 0.609 | 0.938 | OG-12 |
20 | FS2404-16-12 | 1.500 | 1-7/16-12 UN | 3/4-14 NPTF | 2.000 | 0.811 | 0.719 | OG-16 |
21 | FS2404-16-16 | 1.500 | 1-7/16-12 UN | 1-11.5 NPTF | 2.190 | 0.811 | 0.938 | OG-16 |
22 | FS2404-20-16 | 1.750 | 1-11/16-12 UN | 1-11.5 NPTF | 2.280 | 1.024 | 0.938 | OG-20 |
23 | FS2404-20-20 | 1.750 | 1-11/16-12 UN | 1 1/4-11.5 NPTF | 2.300 | 1.024 | 1.250 | OG-20 |
24 | FS2404-24-24 | 2.125 | 2-12 UN | 1 1/2-11.5 NPTF | 2.440 | 1.260 | 1.500 | OG-24 |
