F系列-FS2603
發(fā)布日期:2024-01-12 瀏覽次數(shù):517

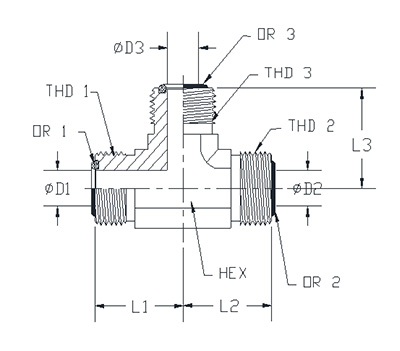

Unit: inch | ||||||||||||||
ITEM | P/N | HEX | THD 1 | THD 2 | THD 3 | L1 | L2 | L3 | D1 | D2 | D3 | OR 1 | OR 2 | OR 3 |
1 | FS2603-04-04-04-FG | 0.562 | 9/16-18 UNF | 9/16-18 UNF | 9/16-18 UNF | 0.850 | 0.850 | 0.850 | 0.172 | 0.172 | 0.172 | OG-04 | OG-04 | OG-04 |
2 | FS2603-06-06-06-FG | 0.750 | 11/16-16 UNF | 11/16-16 UNF | 11/16-16 UNF | 0.980 | 0.980 | 0.980 | 0.264 | 0.264 | 0.264 | OG-06 | OG-06 | OG-06 |
3 | FS2603-08-08-08-FG | 0.750 | 13/16-16 UNF | 13/16-16 UNF | 13/16-16 UNF | 1.100 | 1.100 | 1.100 | 0.378 | 0.378 | 0.378 | OG-08 | OG-08 | OG-08 |
4 | FS2603-10-10-10-FG | 1.062 | 1-14 UNS | 1-14 UNS | 1-14 UNS | 1.310 | 1.310 | 1.310 | 0.484 | 0.484 | 0.484 | OG-10 | OG-10 | OG-10 |
5 | FS2603-12-12-12-FG | 1.188 | 1-3/16-12 UN | 1-3/16-12 UN | 1-3/16-12 UN | 1.470 | 1.470 | 1.470 | 0.609 | 0.609 | 0.609 | OG-12 | OG-12 | OG-12 |
6 | FS2603-16-16-16-FG | 1.438 | 1-7/16-12 UN | 1-7/16-12 UN | 1-7/16-12 UN | 1.640 | 1.640 | 1.640 | 0.811 | 0.811 | 0.811 | OG-16 | OG-16 | OG-16 |
7 | FS2603-20-20-20-FG | 1.625 | 1-11/16-12 UN | 1-11/16-12 UN | 1-11/16-12 UN | 1.760 | 1.760 | 1.760 | 1.024 | 1.024 | 1.024 | OG-20 | OG-20 | OG-20 |
