F系列-FS2704
發(fā)布日期：2024-01-12 瀏覽次數(shù)：499

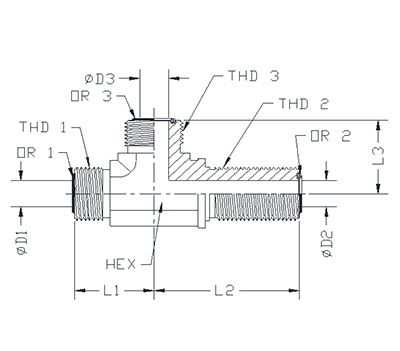

| Unit: inch | ||||||||||||||
| ITEM | P/N | HEX | THD 1 | THD 2 | THD 3 | L1 | L2 | L3 | D1 | D2 | D3 | OR 1 | OR 2 | OR 3 |
| 1 | FS2704-04-04-04-FG | 0.562 | 9/16-18 UNF | 9/16-18 UNF | 9/16-18 UNF | 0.89 | 1.85 | 0.89 | 0.172 | 0.172 | 0.172 | OG-04 | OG-04 | OG-04 |
| 2 | FS2704-06-06-06-FG | 0.750 | 11/16-16 UNF | 11/16-16 UNF | 11/16-16 UNF | 1.02 | 2.05 | 1.02 | 0.264 | 0.264 | 0.264 | OG-06 | OG-06 | OG-06 |
| 3 | FS2704-08-08-08-FG | 0.750 | 13/16-16 UNF | 13/16-16 UNF | 13/16-16 UNF | 1.14 | 2.18 | 1.14 | 0.378 | 0.378 | 0.378 | OG-08 | OG-08 | OG-08 |
| 4 | FS2704-10-10-10-FG | 1.062 | 1-14 UNS | 1-14 UNS | 1-14 UNS | 1.36 | 2.48 | 1.36 | 0.484 | 0.484 | 0.484 | OG-10 | OG-10 | OG-10 |
| 5 | FS2704-12-12-12-FG | 1.188 | 1 3/16-12 UN | 1 3/16-12 UN | 1 3/16-12 UN | 1.52 | 2.65 | 1.52 | 0.609 | 0.609 | 0.609 | OG-12 | OG-12 | OG-12 |
| 6 | FS2704-16-16-16-FG | 1.438 | 1-7/16-12 UN | 1-7/16-12 UN | 1-7/16-12 UN | 1.67 | 2.80 | 1.67 | 0.811 | 0.811 | 0.811 | OG-16 | OG-16 | OG-16 |
