F系列-FS6802
發(fā)布日期:2024-01-12 瀏覽次數(shù):497

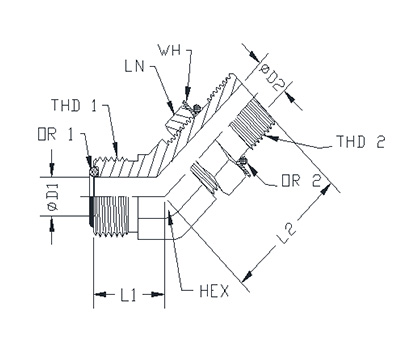

Unit: inch | ||||||||||||
ITEM | P/N | HEX | THD 1 | THD 2 | L1 | L2 | D1 | D2 | OR 1 | LN | WH | OR 2 |
1 | FS6802-04-04-NWO-FG | 0.562 | 9/16-18 UNF | 7/16-20 UNF | 0.63 | 1.18 | 0.172 | 0.172 | OG-04 | LNF-04 | WHE-04 | OE-04 |
2 | FS6802-04-06-NWO-FG | 0.750 | 9/16-18 UNF | 9/16-18 UNF | 0.68 | 1.30 | 0.172 | 0.264 | OG-04 | LNF-06 | WHE-06 | OE-06 |
3 | FS6802-06-04-NWO-FG | 0.750 | 11/16-16 UNF | 7/16-20 UNF | 0.74 | 1.22 | 0.264 | 0.172 | OG-06 | LNF-04 | WHE-04 | OE-04 |
4 | FS6802-06-06-NWO-FG | 0.750 | 11/16-16 UNF | 9/16-18 UNF | 0.74 | 1.30 | 0.264 | 0.264 | OG-06 | LNF-06 | WHE-06 | OE-06 |
5 | FS6802-08-08-NWO-FG | 0.750 | 13/16-16 UNF | 3/4-16 UNF | 0.80 | 1.43 | 0.378 | 0.378 | OG-08 | LNF-08 | WHE-08 | OE-08 |
6 | FS6802-08-10-NWO-FG | 1.062 | 13/16-16 UNF | 7/8-14 UNF | 0.82 | 1.76 | 0.378 | 0.484 | OG-08 | LNF-10 | WHE-10 | OE-10 |
7 | FS6802-10-10-NWO-FG | 1.062 | 1-14 UNS | 7/8-14 UNF | 0.92 | 1.76 | 0.484 | 0.484 | OG-10 | LNF-10 | WHE-10 | OE-10 |
8 | FS6802-10-12-NWO-FG | 1.188 | 1-14 UNS | 1-1/16-12 UN | 0.96 | 1.97 | 0.484 | 0.609 | OG-10 | LNF-12 | WHE-12 | OE-12 |
9 | FS6802-12-12-NWO-FG | 1.188 | 1-3/16-12 UN | 1-1/16-12 UN | 1.02 | 1.97 | 0.609 | 0.609 | OG-12 | LNF-12 | WHE-12 | OE-12 |
10 | FS6802-16-16-NWO-FG | 1.438 | 1-7/16-12 UN | 1-5/16-12 UN | 1.18 | 2.06 | 0.811 | 0.811 | OG-16 | LNF-16 | WHE-16 | OE-16 |
