J系列-2408-CB
發(fā)布日期：2024-01-12 瀏覽次數(shù)：494

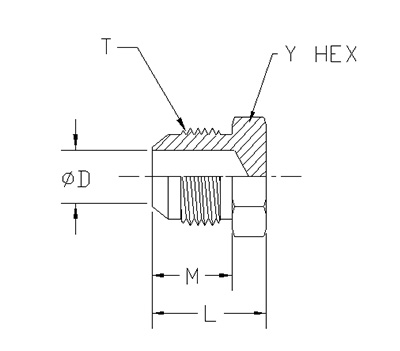

| ITEM | P/N | Y HEX | T | D | L |
| 1 | 2408-03-CB | 0.438 | 3/8-24 UNF. | 0.125 | 0.73 |
| 2 | 2408-04-CB | 0.500 | 7/16-20 UNF. | 0.172 | 0.80 |
| 3 | 2408-05-CB | 0.562 | 1/2-20 UNF. | 0.234 | 0.80 |
| 4 | 2408-06-CB | 0.625 | 9/16-18 UNF. | 0.297 | 0.84 |
| 5 | 2408-08-CB | 0.813 | 3/4-16 UNF. | 0.391 | 0.94 |
| 6 | 2408-10-CB | 0.938 | 7/8-14 UNF. | 0.484 | 1.10 |
| 7 | 2408-12-CB | 1.125 | 1-1/16-12 UN | 0.609 | 1.28 |
| 8 | 2408-14-CB | 1.250 | 1-3/16-12 UN | 0.719 | 1.31 |
| 9 | 2408-16-CB | 1.375 | 1-5/16-12 UN | 0.844 | 1.33 |
| 10 | 2408-20-CB | 1.688 | 1-5/8-12 UN | 1.078 | 1.45 |
| 11 | 2408-24-CB | 2.000 | 1-7/8-12 UN | 1.312 | 1.65 |
| 12 | 2408-32-CB | 2.625 | 2-1/2-12 UN | 1.781 | 2.05 |
