J系列-2502
發(fā)布日期:2024-01-12 瀏覽次數(shù):517

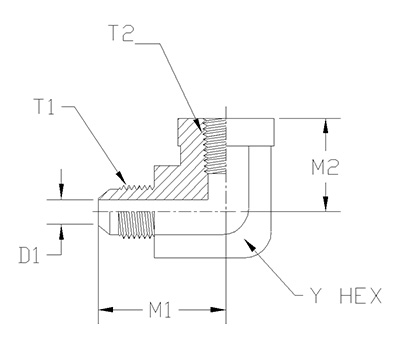

ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 |
1 | 2502-02-02-FG | 0.562 | 5/16-24UNF | 1.00 | 0.062 | 1/8-27NPTF | 0.66 |
2 | 2502-03-02-FG | 0.562 | 3/8-24UNF | 1.03 | 0.125 | 1/8-27NPTF | 0.66 |
3 | 2502-04-02-FG | 0.562 | 7/16-20UNF | 1.08 | 0.172 | 1/8-27NPTF | 0.66 |
4 | 2502-04-04-FG | 0.75 | 7/16-20UNF | 1.22 | 0.172 | 1/4-18NPTF | 0.88 |
5 | 2502-04-06-FG | 0.875 | 7/16-20UNF | 1.29 | 0.172 | 3/8-18NPTF | 1.02 |
6 | 2502-05-02-FG | 0.562 | 1/2-20UNF | 1.08 | 0.234 | 1/8-27NPTF | 0.66 |
7 | 2502-05-04-FG | 0.75 | 1/2-20UNF | 1.22 | 0.234 | 1/4-18NPTF | 0.88 |
8 | 2502-06-02-FG | 0.562 | 9/16-18UNF | 1.23 | 0.297 | 1/8-27NPTF | 0.67 |
9 | 2502-06-04-FG | 0.75 | 9/16-18UNF | 1.23 | 0.297 | 1/4-18NPTF | 0.88 |
10 | 2502-06-06-FG | 0.875 | 9/16-18UNF | 1.31 | 0.297 | 3/8-18NPTF | 1.02 |
11 | 2502-06-08-FG | 1.062 | 9/16-18UNF | 1.41 | 0.297 | 1/2-14NPTF | 1.23 |
12 | 2502-08-04-FG | 0.75 | 3/4-16UNF | 1.42 | 0.391 | 1/4-18NPTF | 1.01 |
13 | 2502-08-06-FG | 0.875 | 3/4-16UNF | 1.42 | 0.391 | 3/8-18NPTF | 1.02 |
14 | 2502-08-08-FG | 1.062 | 3/4-16UNF | 1.52 | 0.391 | 1/2-14NPTF | 1.23 |
15 | 2502-08-12-FG | 1.312 | 3/4-16UNF | 1.65 | 0.391 | 3/4-14NPTF | 1.36 |
16 | 2502-10-08-FG | 1.062 | 7/8-14UN | 1.64 | 0.484 | 1/2-14NPTF | 1.23 |
17 | 2502-12-08-FG | 1.062 | 1-1/16-12UN | 1.89 | 0.609 | 1/2-14NPTF | 1.35 |
18 | 2502-12-12-FG | 1.312 | 1-1/16-12UN | 1.89 | 0.609 | 3/4-14NPTF | 1.36 |
19 | 2502-12-16-FG | 1.625 | 1-1/16-12UN | 2.12 | 0.609 | 1-11-1/2NPTF | 1.62 |
20 | 2502-14-12-FG | 1.312 | 1-3/16-12UN | 1.86 | 0.719 | 3/4-14NPTF | 1.42 |
21 | 2502-16-12-FG | 1.312 | 1-5/16-12UNF | 2.17 | 0.844 | 3/4-14NPTF | 1.39 |
22 | 2502-16-16-FG | 1.625 | 1-5/16-12UN | 2.17 | 0.844 | 1-11-1/2NPTF | 1.62 |
23 | 2502-20-20-FG | 1.875 | 1-5/8-12UN | 2.33 | 1.078 | 1-1/4-11-1/2NPTF | 1.7 |
24 | 2502-24-24-FG | 2.562 | 1-7/8-12UN | 2.89 | 1.312 | 1-1/2-11-1/2NPTF | 2.08 |
25 | 2502-32-32-FG | 2.812 | 2-1/2-12UN | 3.3 | 1.781 | 2-11-1/2NPTF | 2.39 |
