J系列-2601
發(fā)布日期:2024-01-12 瀏覽次數(shù):495

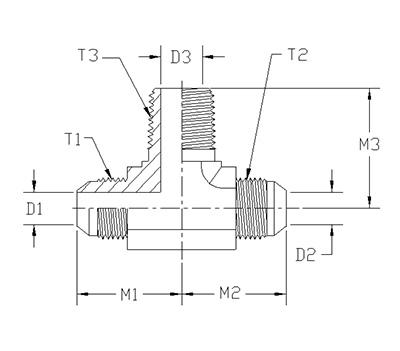

ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 | T3 | M3 | D3 |
1 | 2601-03-03-02-FG | 0.438 | 3/8-24UNF | 0.83 | 0.125 | 3/8-24UNF | 0.83 | 0.125 | 1/8-27NPTF | 0.72 | 0.188 |
2 | 2601-04-04-02-FG | 0.438 | 7/16-20UNF | 0.89 | 0.172 | 7/16-20UNF | 0.89 | 0.172 | 1/8-27NPTF | 0.78 | 0.188 |
3 | 2601-04-04-04-FG | 0.562 | 7/16-20UNF | 1.05 | 0.172 | 7/16-20UNF | 1.05 | 0.172 | 1/4-18NPTF | 1.09 | 0.281 |
4 | 2601-04-04-06-FG | 0.75 | 7/16-20UNF | 1.12 | 0.172 | 7/16-20UNF | 1.12 | 0.172 | 3/8-18NPTF | 1.22 | 0.406 |
5 | 2601-05-05-02-FG | 0.562 | 1/2-20UNF | 0.95 | 0.234 | 1/2-20UNF | 0.95 | 0.234 | 1/8-27NPTF | 0.78 | 0.188 |
6 | 2601-05-05-04-FG | 0.562 | 1/2-20UNF | 1.05 | 0.234 | 1/2-20UNF | 1.05 | 0.234 | 1/4-18NPTF | 1.09 | 0.281 |
7 | 2601-06-06-04-FG | 0.562 | 9/16-18UNF | 1.06 | 0.297 | 9/16-18UNF | 1.06 | 0.297 | 1/4-18NPTF | 1.09 | 0.281 |
8 | 2601-06-06-06-FG | 0.75 | 9/16-18UNF | 1.14 | 0.297 | 9/16-18UNF | 1.14 | 0.297 | 3/8-18NPTF | 1.22 | 0.406 |
9 | 2601-06-06-08-FG | 0.875 | 9/16-18UNF | 1.22 | 0.297 | 9/16-18UNF | 1.22 | 0.297 | 1/2-14NPTF | 1.47 | 0.531 |
10 | 2601-08-08-06-FG | 0.75 | 3/4-16UNF | 1.25 | 0.391 | 3/4-16UNF | 1.25 | 0.391 | 3/8-18NPTF | 1.22 | 0.406 |
11 | 2601-08-08-08-FG | 0.875 | 3/4-16UNF | 1.33 | 0.391 | 3/4-16UNF | 1.33 | 0.391 | 1/2-14NPTF | 1.47 | 0.531 |
12 | 2601-10-10-06-FG | 0.875 | 7/8-14UNF | 1.45 | 0.484 | 7/8-14UNF | 1.45 | 0.484 | 3/8-18NPTF | 1.28 | 0.406 |
13 | 2601-10-10-08-FG | 0.875 | 7/8-14UN | 1.45 | 0.484 | 7/8-14UN | 1.45 | 0.484 | 1/2-14NPTF | 1.47 | 0.531 |
14 | 2601-12-12-08-FG | 1.062 | 1-1/16-12UN | 1.66 | 0.609 | 1-1/16-12UN | 1.66 | 0.609 | 1/2-14NPTF | 1.59 | 0.531 |
15 | 2601-12-12-12-FG | 1.062 | 1-1/16-12UN | 1.66 | 0.609 | 1-1/16-12UN | 1.66 | 0.609 | 3/4-14NPTF | 1.59 | 0.719 |
16 | 2601-14-14-12-FG | 1.312 | 1-3/16-12UN | 1.8 | 0.719 | 1-3/16-12UN | 1.8 | 0.719 | 3/4-14NPTF | 1.69 | 0.719 |
17 | 2601-16-16-12-FG | 1.312 | 1-5/16-12UN | 1.81 | 0.844 | 1-5/16-12UN | 1.81 | 0.844 | 3/4-14NPTF | 1.78 | 0.719 |
18 | 2601-16-16-16-FG | 1.312 | 1-5/16-12UN | 1.81 | 0.844 | 1-5/16-12UN | 1.81 | 0.844 | 1-11-1/2NPTF | 1.97 | 0.938 |
19 | 2601-20-20-20-FG | 1.625 | 1-5/8-12UN | 2.06 | 1.078 | 1-5/8-12UN | 2.06 | 1.078 | 1-1/4-11-1/2NPTF | 2.38 | 1.25 |
20 | 2601-32-32-32-FG | 2.500 | 2-1/2-12 UN | 3.06 | 1.781 | 2-1/2-12 UN | 3.06 | 1.781 | 2-11-1/2 NPTF | 3.00 | 1.938 |
