J系列-6505
發(fā)布日期:2024-01-12 瀏覽次數(shù):512

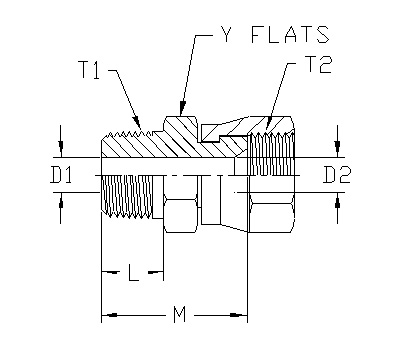

ITEM | P/N | Y HEX | T1 | D1 | T2 | D2 | M |
1 | 6505-02-04 | 0.438 | 1/8-27 NPTF | 0.172 | 7/16-20UNF | 0.172 | 0.97 |
2 | 6505-02-05 | 0.500 | 1/8-27NPTF | 0.172 | 1/2-20UNF | 0.172 | 1.15 |
3 | 6505-02-06 | 0.500 | 1/8-27NPTF | 0.172 | 9/16-18UNF | 0.172 | 1.2 |
4 | 6505-04-04 | 0.562 | 1/4-18NPTF | 0.562 | 7/16-20UNF | 0.172 | 1.51 |
5 | 6505-04-06 | 0.562 | 1/4-18NPTF | 0.281 | 9/16-18UNF | 0.297 | 1.30 |
6 | 6505-04-08 | 0.750 | 1/4-18NPTF | 0.281 | 3/4-16UNF | 0.391 | 1.30 |
7 | 6505-06-04 | 0.750 | 3/8-18NPTF | 0.406 | 7/16-20UNF | 0.172 | 1.16 |
8 | 6505-06-06 | 0.750 | 3/8-18NPTF | 0.297 | 9/16-18UNF | 0.297 | 1.29 |
9 | 6505-06-08 | 0.750 | 3/8-18NPTF | 0.391 | 3/4-16UNF | 0.391 | 1.34 |
10 | 6505-08-10 | 0.875 | 1 /4-14NPTF | 0.484 | 7/8-14UNF | 0.484 | 2.1 |
11 | 6505-16-16 | 1.375 | 1-11-1/2NPTF | 0.844 | 1 5/16-12UN | 0.844 | 2.6 |
12 | 6505-24-24 | 2.000 | 1-1/2-11-1/2NPTF | 1.5 | 1 7/8-12UN | 1.312 | 2.3 |
