J系列-6802
發(fā)布日期：2024-01-12 瀏覽次數(shù)：507

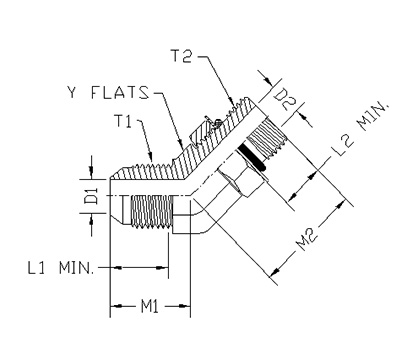

| ITEM | P/N | Y FLATS | T1 | T2 | L1 MIN. | M1 | L3 MIN. | M2 | D1 | D2 |
| 6802-05-05-NW0-FG | 0.562 | 1/2-20 UNF | 1/2-20 UNF | 0.535 | 0.77 | 0.73 | 1.050 | 0.234 | 0.234 | |
| 1 | 6802-06-04-NW0-FG | 0.562 | 9/16-18UNF | 7/16-20UNF | 0.541 | 0.830 | 0.73 | 1.080 | 0.297 | 0.172 |
| 2 | 6802-06-06-NWO-FG | 0.562 | 9/16-18UNF | 9/16-18UNF | 0.541 | 0.830 | 0.75 | 1.140 | 0.297 | 0.297 |
| 3 | 6802-08-08-NWO-FG | 0.750 | 3/4-16 UNF | 3/4-16 UNF | 0.642 | 0.980 | .86 MIN. | 1.300 | 0.391 | 0.391 |
| 4 | 6802-10-10-NWO-FG | 0.875 | 7/8-14UN | 7/8-14UN | 0.743 | 1.110 | 1.00 | 1.520 | 0.484 | 0.484 |
| 5 | 6802-10-12-NW0-FG | 1.062 | 7/8-14UN | 1-1/16-12UN | 0.743 | 1.160 | 1.14 | 1.730 | 0.484 | 0.609 |
| 6 | 6802-12-12-NWO-FG | 1.062 | 1-1/16-12UN | 1-1/16-12UN | 0.849 | 1.280 | 1.14 | 1.730 | 0.609 | 0.609 |
| 7 | 6802-12-16-NWO-FG | 1.312 | 1-1/16-12UN | 1-5/16-12UN | 0.849 | 1.420 | 1.14 | 1.860 | 0.609 | 0.844 |
| 8 | 6802-16-16-NWO-FG | 1.312 | 1-5/16-12UN | 1-5/16-12UN | 0.896 | 1.470 | 1.14 | 1.860 | 0.844 | 0.844 |
| 9 | 6802-20-16-NWO-FG | 1.625 | 1-5/8-12UN | 1-5/16-12UN | 0.943 | 1.590 | 1.14 | 1.910 | 1.078 | 0.844 |
| 10 | 6802-20-20-NOW-FG | 1.625 | 1-5/8-12UN | 1-5/8-12UN | 0.943 | 1.590 | 1.14 | 1.910 | 1.078 | 1.078 |
| 6802-24-24-NWO-FG | 1.875 | 1-7/8-12UN | 1-7/8-12UN | 1.068 | 1.780 | 1.14 | 1.910 | 1.312 | 1.312 | |
| 6802-32-32-NWO-FG | 2.500 | 2 1/2-12UN | 2 1/2-12UN | 1.318 | 2.220 | 1.14 | 1.860 | 1.781 | 1.781 |
