P系列-1601
發(fā)布日期：2024-01-16 瀏覽次數(shù)：501

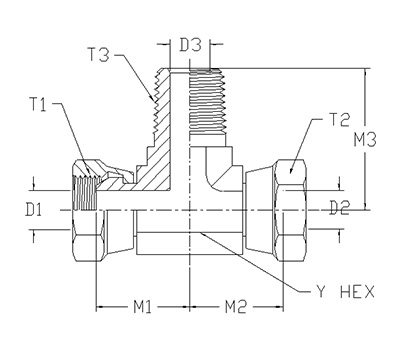

| ITEM | P/N | Y HEX | T1 | T2 | T3 | M1 | M2 | M3 | D1 | D2 | D3 |
| 1 | 1601-04-04-06-FG | 0.750 | 1/4-18 NPSM | 1/4-18 NPSM | 3/8-18 NPTF | 0.970 | 0.970 | 1.220 | 0.210 | 0.210 | 0.406 |
| 2 | 1601-04-04-08-FG | 0.875 | 1/4-18 NPSM | 1/4-18 NPSM | 1/2-14 NPTF | 1.020 | 1.020 | 1.470 | 0.210 | 0.210 | 0.531 |
| 3 | 1601-06-06-04-FG | 0.750 | 3/8-18 NPSM | 3/8-18 NPSM | 1/4-18 NPTF | 0.990 | 0.990 | 1.220 | 0.320 | 0.320 | 0.281 |
| 4 | 1601-06-06-06-FG | 0.750 | 3/8-18NPSM | 3/8-18NPSM | 3/8-18NPTF | 0.990 | 0.990 | 1.220 | 0.320 | 0.320 | 0.406 |
| 5 | 1601-06-06-08-FG | 0.875 | 3/8-18 NPSM | 3/8-18 NPSM | 1/2-14 NPTF | 1.040 | 1.040 | 1.470 | 0.320 | 0.320 | 0.531 |
| 6 | 1601-08-08-08-FG | 0.875 | 1/2-14NPSM | 1/2-14NPSM | 1/2-14NPTF | 1.110 | 1.110 | 1.470 | 0.440 | 0.440 | 0.531 |
| 7 | 1601-08-08-12-FG | 1.062 | 1/2-14 NPSM | 1/2-14 NPSM | 3/4-14 NPTF | 1.330 | 1.330 | 1.590 | 0.440 | 0.440 | 0.719 |
| 8 | 1601-12-12-16-FG | 1.312 | 3/4-14NPSM | 3/4-14NPSM | 1-11-1/2NPTF | 1.540 | 1.540 | 1.780 | 0.610 | 0.610 | 0.938 |
| 9 | 1601-16-12-16-FG | 1.312 | 1-11-1/2 NPSM | 3/4-14 NPSM | 1-11-1/2 NPTF | 1.540 | 1.400 | 1.970 | 0.610 | 0.610 | 0.938 |
| 10 | 1601-16-16-16-FG | 1.312 | 1-11-1/2 NPSM | 1-11-1/2 NPSM | 1-11-1/2 NPTF | 1.540 | 1.540 | 1.970 | 0.780 | 0.780 | 0.938 |
| 11 | 1601-20-20-20-FG | 1.625 | 1-1/4-11-1/2 NPSM | 1-1/4-11-1/2 NPSM | 1-1/4-11-1/2 NPTF | 1.730 | 1.730 | 2.380 | 1.010 | 1.010 | 1.250 |
