P系列-5504
發(fā)布日期：2024-01-16 瀏覽次數(shù)：539

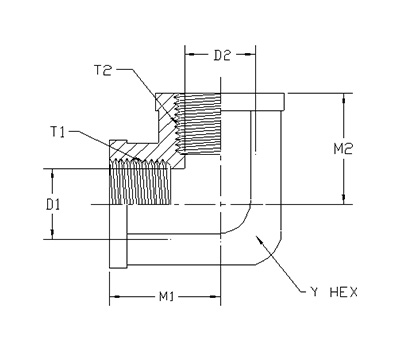

| ITEM | P/N | Y | T1 | M1 | D1 | T2 | M2 | D2 |
| 1 | 5504-02-02-FG | 0.562 | 1/8-27NPTF | 0.66 | 0.315 | 1/8-27NPTF | 0.66 | 0.315 |
| 2 | 5504-04-02-FG | 0.75 | 1/4-18NPTF | 0.88 | 0.39 | 1/8-27NPTF | 0.67 | 0.315 |
| 3 | 5504-04-04-FG | 0.75 | 1/4-18NPTF | 0.88 | 0.39 | 1/4-18NPTF | 0.88 | 0.39 |
| 4 | 5504-06-04-FG | 0.875 | 3/8-18NPTF | 1.02 | 0.531 | 3/8-18NPTF | 1.01 | 0.39 |
| 5 | 5504-06-06-FG | 0.875 | 3/8-18NPTF | 1.02 | 0.531 | 3/8-18NPTF | 1.02 | 0.531 |
| 6 | 5504-06-08-FG | 1.062 | 3/8-18NPTF | 1.01 | 0.531 | 1/2-14NPTF | 1.23 | 0.649 |
| 7 | 5504-08-04-FG | 1.062 | 1/2-14NPTF | 1.23 | 0.649 | 1/4-18NPTF | 1 | 0.39 |
| 8 | 5504-08-06-FG | 1.062 | 1/2-14NPTF | 1.23 | 0.649 | 3/8-18NPTF | 1.01 | 0.531 |
| 9 | 5504-08-08-FG | 1.062 | 1/2-14NPTF | 1.23 | 0.649 | 1/2-14NPTF | 1.23 | 0.649 |
| 10 | 5504-12-08-FG | 1.312 | 3/4-14NPTF | 1.36 | 0.854 | 1/2-14NPTF | 1.35 | 0.649 |
| 11 | 5504-12-12-FG | 1.312 | 3/4-14NPTF | 1.36 | 0.854 | 3/4-14NPTF | 1.36 | 0.854 |
| 12 | 5504-16-12-FG | 1.625 | 1-11-1/2NPTF | 1.62 | 1.080 | 3/4-14NPTF | 1.39 | 0.854 |
| 13 | 5504-16-16-FG | 1.625 | 1-11-1/2NPTF | 1.62 | 1.080 | 1-11-1/2NPTF | 1.62 | 1.08 |
| 14 | 5504-20-20-FG | 1.875 | 1-1/4-11-1/2NPTF | 1.7 | 1.421 | 1-1/4-11-1/2NPTF | 1.7 | 1.421 |
| 15 | 5504-24-24-FG | 2.562 | 1-1/2-11-1/2NPTF | 2.08 | 1.657 | 1-1/2-11-1/2NPTF | 2.08 | 1.657 |
