J系列-0304-C-S
發(fā)布日期：2023-11-21 瀏覽次數(shù)：535

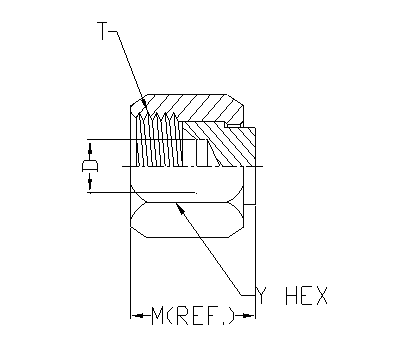

| ITEM | P/N | Y FLATS | T | M (REF) | D |
| 1 | 0304-C-S-02 | 0.375 | 5/16-24 UNF | 0.601 | 0.094 |
| 2 | 0304-C-S-03 | 0.438 | 3/8-24 UNF | 0.662 | 0.156 |
| 3 | 0304-C-S-04 | 0.563 | 7/16-20 UNF | 0.673 | 0.172 |
| 4 | 0304-C-S-05 | 0.625 | 1/2-20 UNF | 0.766 | 0.234 |
| 5 | 0304-C-S-06 | 0.6875 | 9/16-18 UNF | 0.806 | 0.297 |
| 6 | 0304-C-S-08 | 0.875 | 3/4-16 UNF | 0.942 | 0.391 |
| 7 | 0304-C-S-10 | 1.000 | 7/8-14 UNF | 1.067 | 0.484 |
| 8 | 0304-C-S-12 | 1.250 | 1 1/16-12 UN | 1.243 | 0.562 |
| 9 | 0304-C-S-14 | 1.375 | 1 3/16-12 UN | 1.258 | 0.719 |
| 10 | 0304-C-S-16 | 1.500 | 1 5/16-12 UN | 1.290 | 0.844 |
| 11 | 0304-C-S-20 | 2.000 | 1 5/8-12 UN | 1.392 | 1.078 |
| 12 | 0304-C-S-24 | 2.250 | 1 7/8-12 UN | 1.701 | 1.312 |
| 13 | 0304-C-S-32 | 2.875 | 2 1/2-12 UN | 2.071 | 1.781 |
