BF_FB-FS6710
發(fā)布日期:2024-01-16 瀏覽次數(shù):503

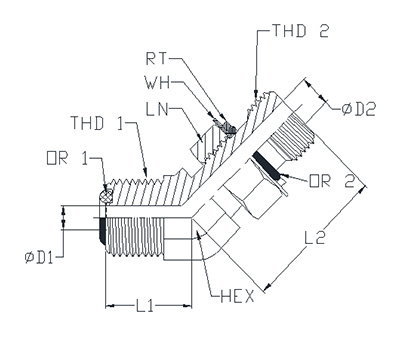

Unit: inch | |||||||||||||
ITEM | P/N | HEX | THD 1 | THD 2 | L1 | L2 | D1 | D2 | OR 1 | LN | WH | RT | OR 2 |
1 | FS6710-04-04 | 0.562 | 9/16-18 UNF | G1/4-19 | 0.63 | 1.18 | 0.172 | 0.248 | OG-04 | LNY-04 | WHY-04 | 6070-04 | OY-04 |
2 | FS6710-06-04 | 0.750 | 11/16-16 UNF | G3/8-19 | 0.74 | 1.22 | 0.264 | 0.248 | OG-06 | LNY-04 | WHY-04 | 6070-04 | OY-04 |
3 | FS6710-06-06 | 0.750 | 11/16-16 UNF | G3/8-19 | 0.74 | 1.3 | 0.264 | 0.375 | OG-06 | LNY-06 | WHY-06 | 6070-06 | OY-06 |
4 | FS6710-08-06 | 0.750 | 13/16-16 UNF | G3/8-19 | 0.8 | 1.27 | 0.378 | 0.375 | OG-08 | LNY-06 | WHY-06 | 6070-06 | OY-06 |
5 | FS6710-08-08 | 0.875 | 13/16-16 UNF | G1/2-14 | 0.82 | 1.52 | 0.378 | 0.472 | OG-08 | LNY-08 | WHY-08 | 6070-08 | OY-08 |
6 | FS6710-10-08 | 1.062 | 1-14 UNS | G1/2-14 | 0.92 | 1.6 | 0.484 | 0.472 | OG-10 | LNY-08 | WHY-08 | 6070-08 | OY-08 |
7 | FS6710-10-12 | 1.062 | 1-14 UNS | G3/4-14 | 0.92 | 1.73 | 0.484 | 0.608 | OG-10 | LNY-12 | WHY-12 | 6070-12 | OY-12 |
8 | FS6710-12-12 | 1.188 | 1 3/16-12 UN | G3/4-14 | 1.02 | 1.97 | 0.609 | 0.608 | OG-12 | LNY-12 | WHY-12 | 6070-12 | OY-12 |
9 | FS6710-16-16 | 1.438 | 1 7/16-12 UN | G1-11 | 1.18 | 2.06 | 0.811 | 0.846 | OG-16 | LNY-16 | WHY-16 | 6070-16 | OY-16 |
10 | FS6710-20-20 | 1.625 | 1 11/16-12 UN | G1 1/4-11 | 1.25 | 2.11 | 1.024 | 1.078 | OG-20 | LNY-20 | WHY-20 | 6070-20 | OY-20 |
