F8OMXS
發(fā)布日期:2024-01-16 瀏覽次數(shù):530

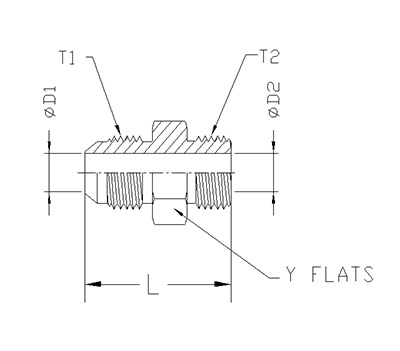

ITEM | P/N | Y FLATS | T1 | T2 | D1 | D2 | L |
1 | 4M10F8OMXS | 0.63 | 7/16-20UNF | M10*1.0 | 0.172 | 0.172 | 1.2 |
2 | 4M12F8OMXS | 0.75 | 7/16-20UNF | M12*1.5 | 0.172 | 0.172 | 1.228 |
3 | 5M12F8OMXS | 0.75 | 1/2-20UNF | M12*1.5 | 0.234 | 0.234 | 1.228 |
4 | 6M14F8OMXS | 0.748 | 9/16-18UNF | M14*1.5 | 0.297 | 0.297 | 1.23 |
5 | 12M22F8OMXS | 1.063 | 1 1/16-12 UN | M22*1.5 | 0.609 | 0.551 | 1.78 |
