B系列-60-6000
發(fā)布日期:2024-01-09 瀏覽次數(shù):515

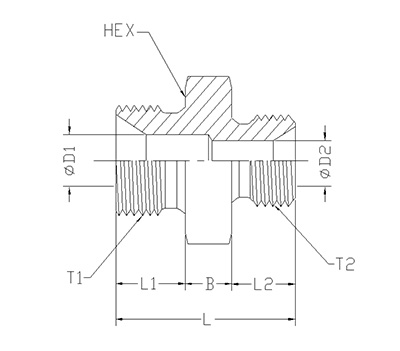

ITEM | P/N | T1 | T2 | D1 | D2 | L1 | L2 | B | L | HEX |
1 | 6000-04-04 | G1/4-19 | G1/4-19 | 6.0 | 6.0 | 11.75 | 11.75 | 7.0 | 30.5 | 19 |
2 | 6000-06-04 | G3/8-19 | G1/4-19 | 7.9 | 6.0 | 12.00 | 11.00 | 8.0 | 31.0 | 22 |
3 | 6000-06-06 | G3/8-19 | G3/8-19 | 7.9 | 7.9 | 12.00 | 12.00 | 8.0 | 32.0 | 22 |
4 | 6000-08-06 | G1/2-14 | G3/8-19 | 11.1 | 7.9 | 14.00 | 12.00 | 10.0 | 36.0 | 27 |
5 | 6000-08-08 | G1/2-14 | G1/2-14 | 11.1 | 11.1 | 14.00 | 14.00 | 10.0 | 38.0 | 27 |
6 | 6000-12-08 | G3/4-14 | G1/2-14 | 14.5 | 11.1 | 16.00 | 14.00 | 12.0 | 42.0 | 32 |
7 | 6000/12/12 | G3/4-14 | G3/4-14 | 14.5 | 14.5 | 16.00 | 16.00 | 12.0 | 44.0 | 32 |
8 | 6000-16-12 | G1-11 | G3/4-14 | 20.0 | 14.5 | 19.00 | 16.00 | 12.5 | 47.5 | 41 |
9 | 6000-16-16 | G1-11 | G1-11 | 20.0 | 20.0 | 19.00 | 19.00 | 12.5 | 50.5 | 41 |
