B系列-60-6030
發(fā)布日期:2024-01-09 瀏覽次數:487

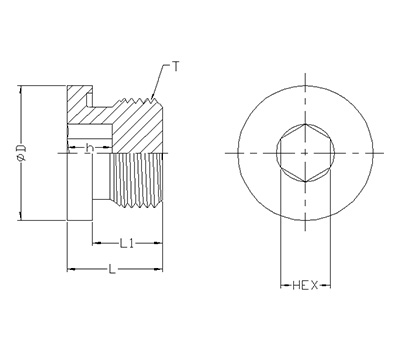

ITEM | P/N | T | D | h | L1 | L | HEX |
1 | 6030-02 | G1/8-28 | 14 | 6 | 8 | 12 | 5 |
2 | 6030-04 | G1/4-19 | 19 | 8 | 12 | 17 | 6 |
3 | 6030-06 | G3/8-19 | 22 | 8 | 12 | 17 | 8 |
4 | 6030-08 | G1/2-14 | 27 | 9 | 14 | 19 | 10 |
5 | 6030-12 | G3/4-14 | 32 | 9 | 16 | 21 | 12 |
6 | 6030-16 | G1-11 | 40 | 11.5 | 16 | 22.5 | 17 |
7 | 6030-20 | G1 1/4-11 | 50 | 11.5 | 16 | 22.5 | 22 |
8 | 6030-24 | G1 1/2-11 | 55 | 11.5 | 16 | 22.5 | 24 |
