E系列-C2404
發(fā)布日期:2024-01-09 瀏覽次數(shù):510

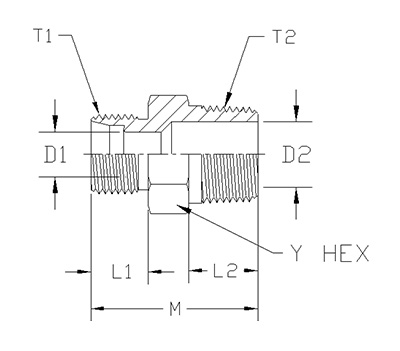

ITEM | P/N | Y HEX | T1 | M | D1 | T2 | D2 |
1 | C2404-02-02-FG | 0.438 | 5/16-24UNF | 1.04 | 0.093 | 1/8-27NPTF | 0.093 |
2 | C2404-02-04-FG | 0.562 | 5/16-24UNF | 1.24 | 0.093 | 1/4-18NPTF | 0.281 |
3 | C2404-03-02-FG | 0.438 | 3/8-24UNF | 1.09 | 0.125 | 1/8-27NPTF | 0.125 |
4 | C2404-04-02-FG | 0.5 | 7/16-20UNF | 1.12 | 0.188 | 1/8-27NPTF | 0.188 |
5 | C2404-04-04-FG | 0.625 | 7/16-20UNF | 1.32 | 0.203 | 1/4-18NPTF | 0.203 |
6 | C2404-04-06-FG | 0.75 | 7/16-20UNF | 1.33 | 0.203 | 3/8-18NPTF | 0.406 |
7 | C2404-04-08-FG | 0.875 | 7/16-20UNF | 1.58 | 0.203 | 1/2-14NPTF | 0.531 |
8 | C2404-05-02-FG | 0.562 | 1/2-20UNF | 1.12 | 0.234 | 1/8-27NPTF | 0.188 |
9 | C2404-05-04-FG | 0.562 | 1/2-20UNF | 1.32 | 0.234 | 1/4-18NPTF | 0.234 |
10 | C2404-06-02-FG | 0.625 | 9/16-18UNF | 1.15 | 0.281 | 1/8-27NPTF | 0.188 |
11 | C2404-06-04-FG | 0.625 | 9/16-18UNF | 1.34 | 0.281 | 1/4-18NPTF | 0.281 |
12 | C2404-06-06-FG | 0.813 | 9/16-18UNF | 1.35 | 0.281 | 3/8-18NPTF | 0.281 |
13 | C2404-06-08-FG | 0.938 | 9/16-18UNF | 1.6 | 0.281 | 1/2-14NPTF | 0.531 |
14 | C2404-08-02-FG | 0.813 | 3/4-16UNF | 1.25 | 0.422 | 1/8-27NPTF | 0.188 |
15 | C2404-08-04-FG | 0.813 | 3/4-16UNF | 1.44 | 0.281 | 1/4-18NPTF | 0.281 |
16 | C2404-08-06-FG | 0.813 | 3/4-16UNF | 1.44 | 0.406 | 3/8-18NPTF | 0.406 |
17 | C2404-08-08-FG | 0.936 | 3/4-16UNF | 1.69 | 0.422 | 1/2-14NPTF | 0.422 |
18 | C2404-08-12-FG | 1.125 | 3/4-16UNF | 1.76 | 0.422 | 3/4-14NPTF | 0.719 |
19 | C2404-10-06-FG | 0.938 | 7/8-14UNF | 1.56 | 0.5 | 3/8-18NPTF | 0.406 |
20 | C2404-10-08-FG | 0.938 | 7/8-14UNF | 1.75 | 0.5 | 1/2-14NPTF | 0.5 |
21 | C2404-10-12-FG | 1.125 | 7/8-14UNF | 1.82 | 0.5 | 3/4-14NPTF | 0.719 |
22 | C2404-12-08-FG | 1.125 | 1-1/16-12UN | 1.88 | 0.531 | 1/2-14NPTF | 0.531 |
23 | C2404-12-12-FG | 1.125 | 1-1/16-12UN | 1.88 | 0.656 | 3/4-14NPTF | 0.656 |
24 | C2404-16-12-FG | 1.375 | 1-5/16-12UNF | 1.88 | 0.875 | 3/4-14NPTF | 0.719 |
25 | C2404-16-16-FG | 1.375 | 1-5/16-12UNF | 2.07 | 0.875 | 1-11-1/2NPTF | 0.875 |
26 | C2404-20-20-FG | 1.625 | 1-5/8-12UNF | 2.18 | 1.093 | 1-1/4-11-1/2NPTF | 1.093 |
