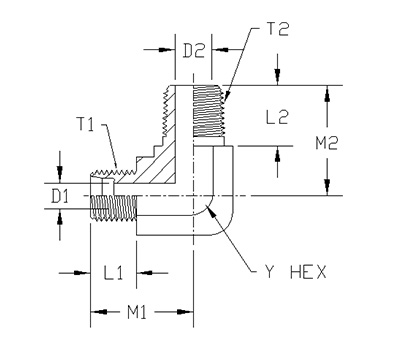

ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 |
1 | C2501-02-02-FG | 0.438 | 5/16-24UNF | 0.77 | 0.093 | 1/8-27NPTF | 0.72 | 0.188 |
2 | C2501-03-02-FG | 0.438 | 3/8-24UNF | 0.83 | 0.125 | 1/8-27NPTF | 0.72 | 0.188 |
3 | C2501-04-02-FG | 0.438 | 7/16-20UNF | 0.89 | 0.203 | 1/8-27NPTF | 0.78 | 0.188 |
4 | C2501-04-04-FG | 0.562 | 7/16-20UNF | 1.03 | 0.172 | 1/4-18NPTF | 1.09 | 0.281 |
5 | C2501-05-04-FG | 0.562 | 1/2-20UNF | 1.03 | 0.234 | 1/4-18NPTF | 1.09 | 0.281 |
6 | C2501-06-02-FG | 0.562 | 9/16-18UNF | 1.05 | 0.281 | 1/8-27NPTF | 0.9 | 0.188 |
7 | C2501-06-04-FG | 0.562 | 9/16-18UNF | 1.05 | 0.297 | 1/4-18NPTF | 1.09 | 0.281 |
8 | C2501-06-06-FG | 0.75 | 9/16-18UNF | 1.14 | 0.297 | 3/8-18NPTF | 1.22 | 0.406 |
9 | C2501-06-08-FG | 0.875 | 9/16-18UNF | 1.24 | 0.281 | 1/2-14NPTF | 1.47 | 0.531 |
10 | C2501-08-04-FG | 0.750 | 3/4-16UNF | 1.25 | 0.422 | 1/4-18NPTF | 1.22 | 0.281 |
11 | C2501-08-06-FG | 0.750 | 3/4-16UNF | 1.25 | 0.422 | 3/8-18NPTF | 1.22 | 0.406 |
12 | C2501-08-08-FG | 0.875 | 3/4-16UNF | 1.35 | 0.391 | 1/2-14NPTF | 1.47 | 0.531 |
13 | C2501-08-12-FG | 1.062 | 3/4-16UNF | 1.43 | 0.422 | 3/4-14NPTF | 1.59 | 0.719 |
14 | C2501-10-06-FG | 0.875 | 7/8-14UNF | 1.42 | 0.500 | 3/8-18NPTF | 1.28 | 0.406 |
15 | C2501-12-08-FG | 1.062 | 1-1/16-12UN | 1.58 | 0.656 | 1/2-14NPTF | 1.59 | 0.531 |
16 | C2501-12-12-FG | 1.062 | 1-1/16-12UN | 1.58 | 0.609 | 3/4-14NPTF | 1.59 | 0.719 |
17 | C2501-14-12-FG | 1.312 | 1-3/16-12UN | 1.66 | 0.719 | 3/4-14NPTF | 1.69 | 0.719 |
18 | C2501-16-16-FG | 1.312 | 1-5/16-12UN | 1.73 | 0.844 | 1-11.5NPTF | 1.97 | 0.938 |
19 | C2501-20-20-FG | 1.625 | 1-5/8-12UN | 1.89 | 1.093 | 1.25-11.5NPTF | 2.38 | 1.250 |
20 | C2501-24-24-FG | 1.875 | 1-7/8-12UN | 2.02 | 1.344 | 1.5-11.5NPTF | 2.64 | 1.500 |
21 | C2501-32-32-FG | 2.500 | 2-1/2-12UN | 2.45 | 1.813 | 2-11.5NPTF | 3.00 | 1.938 |
