E系列-C6801
發(fā)布日期:2024-01-09 瀏覽次數(shù):520

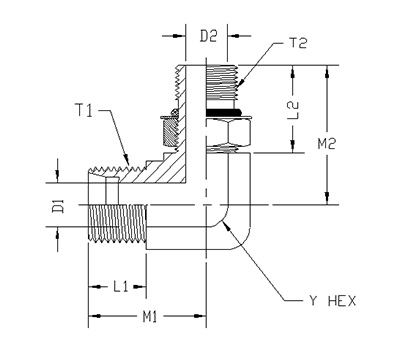

ITEM | P/N | Y HEX | T1 | T2 | L1 | L2 | D1 | D2 |
1 | C6801-04-04-NWO-FG | 0.562 | 9/16-18UNF | 7/16-20UNF | 0.85 | 1.29 | 0.172 | 0.172 |
2 | C6801-04-06-NWO-FG | 0.75 | 9/16-18UNF | 9/16-18UNF | 0.92 | 1.45 | 0.172 | 0.264 |
3 | C6801-06-04-NWO-FG | 0.75 | 11/16-16UNF | 7/16-20UNF | 0.98 | 1.37 | 0.264 | 0.172 |
4 | C6801-06-06-NWO-FG | 0.75 | 11/16-16UNF | 9/16-18UNF | 0.98 | 1.45 | 0.264 | 0.264 |
5 | C6801-06-08-NWO-FG | 0.75 | 11/16-16UNF | 3/4-16UN | 1.04 | 1.6 | 0.264 | 0.378 |
6 | C6801-06-10-NWO-FG | 1.062 | 11/16-16UNF | 7/8-14UN | 1.15 | 1.97 | 0.264 | 0.484 |
7 | C6801-08-06-NWO-FG | 0.75 | 13/16-16UNF | 9/16-18UNF | 1.1 | 1.44 | 0.378 | 0.264 |
8 | C6801-08-08-NWO-FG | 0.75 | 13/16-16UNF | 3/4-16UN | 1.1 | 1.6 | 0.378 | 0.378 |
9 | C6801-08-10-NWO-FG | 1.062 | 13/16-16UNF | 7/8-14UN | 1.21 | 1.97 | 0.378 | 0.484 |
10 | C6801-10-08-NW0-FG | 1.062 | 1-14UNS | 3/4-16UN | 1.31 | 1.8 | 0.484 | 0.378 |
11 | C6801-10-10-NWO-FG | 1.062 | 1-14UNS | 7/8-14UN | 1.31 | 1.97 | 0.484 | 0.484 |
12 | C6801-10-12-NWO-FG | 1.188 | 1-14UNS | 1-1/16-12UN | 1.41 | 2.17 | 0.484 | 0.609 |
13 | C6801-12-08-NWO-FG | 1.188 | 1-3/16-12UN | 3/4-16UN | 1.47 | 1.84 | 0.609 | 0.378 |
14 | C6801-12-10-NW0-FG | 1.188 | 1-3/16-12UN | 7/8-14UN | 1.47 | 2.01 | 0.609 | 0.484 |
15 | C6801-12-12-NW0-FG | 1.188 | 1-3/16-12UN | 1-1/16-12UN | 1.47 | 2.17 | 0.609 | 0.609 |
16 | C6801-12-16-NW0-FG | 1.438 | 1-3/16-12UN | 1-5/16-12UN | 1.62 | 2.35 | 0.609 | 0.811 |
17 | C6801-16-12-NW0-FG | 1.438 | 1-7/16-12UN | 1-1/16-12UN | 1.64 | 2.32 | 0.811 | 0.609 |
18 | C6801-16-16-NW0-FG | 1.438 | 1-7/16-12UN | 1-5/16-12UN | 1.64 | 2.35 | 0.811 | 0.811 |
19 | C6801-20-16-NW0-FG | 1.625 | 1-11/16-12UN | 1-5/16-12UN | 1.76 | 2.45 | 1.024 | 0.811 |
20 | C6801-20-20-NW0-FG | 1.625 | 1-11/16-12UN | 1-5/8-12UN | 1.76 | 2.45 | 1.024 | 1.024 |
