E系列-C2602
發(fā)布日期:2024-01-09 瀏覽次數(shù):488

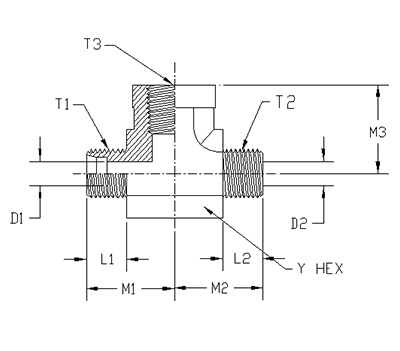

ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 | T3 | M3 | D3 |
1 | C2602-04-04-02-FG | 0.562 | 7/16-20 UNF | 0.89 | 0.203 | 7/16-20 UNF | 0.89 | 0.203 | 1/8-27 NPTF | 0.66 | 0.188 |
2 | C2602-04-04-04-FG | 0.750 | 7/16-20 UNF | 0.89 | 0.203 | 7/16-20 UNF | 0.89 | 0.203 | 1/4-18 NPTF | 0.88 | 0.281 |
3 | C2602-06-06-04-FG | 0.75 | 9/16-18 UNF | 1.05 | 0.281 | 9/16-18 UNF | 1.05 | 0.281 | 1/4-18 NPTF | 0.88 | 0.281 |
4 | C2602-06-06-06-FG | 0.875 | 9/16-18 UNF | 1.12 | 0.281 | 9/16-18 UNF | 1.12 | 0.281 | 3/8-18 NPTF | 1.02 | 0.531 |
5 | C2602-08-08-06-FG | 0.875 | 3/4-16 UNF | 1.23 | 0.422 | 3/4-16 UNF | 1.23 | 0.422 | 3/8-18 NPTF | 1.02 | 0.406 |
6 | C2602-10-10-08-FG | 1.062 | 7/8-14 UNF | 1.42 | 0.5 | 7/8-14 UNF | 1.42 | 0.5 | 1/2-14 NPTF | 1.23 | 0.531 |
7 | C2602-12-12-12-FG | 1.312 | 1-1/16-12 UN | 1.58 | 0.656 | 1-1/16-12 UN | 1.58 | 0.656 | 3/4-14 NPTF | 1.36 | 0.719 |
8 | C2602-14-14-12-FG | 1.312 | 1-3/16-12UN | 1.62 | 0.719 | 1-3/16-12UN | 1.62 | 0.719 | 3/4-14 NPTF | 1.42 | 0.719 |
9 | C2602-16-16-16-FG | 1.625 | 1-5/16-12 UN | 1.73 | 0.875 | 1-5/16-12 UN | 1.73 | 0.875 | 1-11-1/2 NPTF | 1.62 | 0.938 |
10 | C2602-20-20-20-FG | 1.875 | 1-5/8-12 UN | 2.08 | 1.093 | 1-5/8-12 UN | 2.08 | 1.093 | 1-1/4-11-1/2 NPTF | 1.7 | 1.250 |
