F系列-FS2403
發(fā)布日期:2024-01-12 瀏覽次數(shù):501
Unit: inch | |||||||||

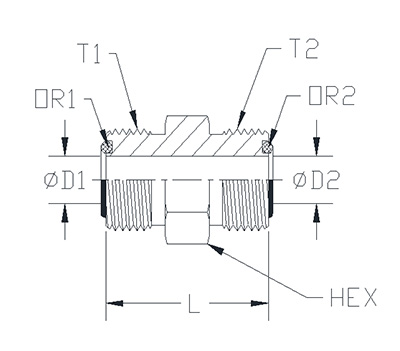

ITEM | P/N | HEX | T1 | T2 | L | D1 | D2 | OR1 | OR2 |
1 | FS2403-04-04 | 0.625 | 9/16-18 UNF | 9/16-18 UNF | 1.080 | 0.172 | 0.172 | OG-04 | OG-04 |
2 | FS2403-06-04 | 0.750 | 11/16-16 UNF | 9/16-18 UNF | 1.170 | 0.264 | 0.172 | OG-06 | OG-04 |
3 | FS2403-06-06 | 0.750 | 11/16-16 UNF | 11/16-16 UNF | 1.220 | 0.264 | 0.264 | OG-06 | OG-06 |
4 | FS2403-08-06 | 0.875 | 13/16-16 UNF | 11/16-16 UNF | 1.330 | 0.378 | 0.264 | OG-08 | OG-06 |
5 | FS2403-08-08 | 0.875 | 13/16-16 UNF | 13/16-16 UNF | 1.390 | 0.378 | 0.378 | OG-08 | OG-08 |
6 | FS2403-10-08 | 1.062 | 1-14 UNS | 13/16-16 UNF | 1.570 | 0.484 | 0.378 | OG-10 | OG-08 |
7 | FS2403-10-10 | 1.062 | 1-14 UNS | 1-14 UNS | 1.680 | 0.484 | 0.484 | OG-10 | OG-10 |
8 | FS2403-12-10 | 1.250 | 1-3/16-12 UN | 1-14 UNS | 1.800 | 0.609 | 0.484 | OG-12 | OG-10 |
9 | FS2403-12-12 | 1.250 | 1-3/16-12 UN | 1-3/16-12 UN | 1.860 | 0.609 | 0.609 | OG-12 | OG-12 |
10 | FS2403-16-12 | 1.500 | 1-7/16-12 UN | 1-3/16-12 UN | 1.920 | 0.811 | 0.609 | OG-16 | OG-12 |
11 | FS2403-16-16 | 1.500 | 1-7/16-12 UN | 1-7/16-12 UN | 1.940 | 0.811 | 0.811 | OG-16 | OG-16 |
12 | FS2403-20-20 | 1.750 | 1-11/16-12 UN | 1-11/16-12 UN | 2.020 | 1.024 | 1.024 | OG-20 | OG-20 |
13 | FS2403-24-24 | 2.125 | 2-12 UN | 2-12 UN | 2.090 | 1.260 | 1.260 | OG-24 | OG-24 |
