F系列-FS2407
發(fā)布日期:2024-01-12 瀏覽次數(shù):497

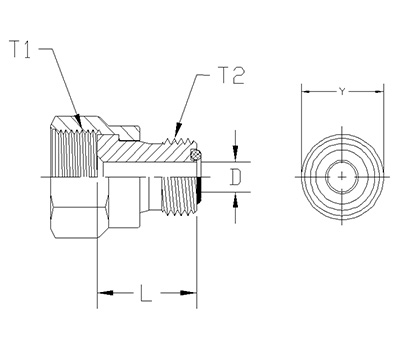

ITEM | P/N | Y | T1 | T2 | L | D |
1 | FS2407-06-04-FG | 0.620 | 11/16-16UNF | 9/16-18UNF | 0.770 | 0.172 |
2 | FS2407-08-06-FG | 0.745 | 13/16-16UNF | 11/16-16UNF | 0.880 | 0.264 |
3 | FS2407-10-04-FG | 0.923 | 1-14UNS | 9/16-18UNF | 0.900 | 0.172 |
4 | FS2407-10-06-FG | 0.923 | 1-14UNS | 11/16-16UNF | 0.950 | 0.264 |
5 | FS2407-10-08-FG | 0.923 | 1-14UNS | 13/16-16UNF | 1.010 | 0.378 |
6 | FS2407-12-08-FG | 1.097 | 1 3/16-12UN | 13/16-16UNF | 1.090 | 0.378 |
7 | FS2407-12-10-FG | 1.097 | 1 3/16-12UN | 1-14UNS | 1.160 | 0.484 |
8 | FS2407-16-10-FG | 1.347 | 1 7/16-12UN | 1-14UNS | 1.260 | 0.484 |
