J系列-2406-E
發(fā)布日期：2024-01-12 瀏覽次數(shù)：515

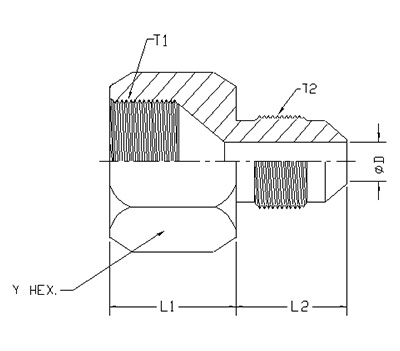

| ITEM | P/N | T1 | T2 | D | L1 | L2 | Y HEX |
| 1 | 2406-06-04-E | 9/16-18 UNF | 7/16-20 UNF | 4.40 | 15.88 | 14.00 | 17.46 |
| 2 | 2406-08-06-E | 3/4-16 UNF | 9/16-18 UNF | 7.50 | 19.05 | 14.12 | 22.23 |
| 3 | 2406-10-04-E | 7/8-14 UNF | 7/16-20 UNF | 4.40 | 21.44 | 14.00 | 25.40 |
| 4 | 2406-12-08-E | 1 1/16-12 UN | 3/4-16 UNF | 9.90 | 23.00 | 16.69 | 31.75 |
