P系列-5502
發(fā)布日期:2024-01-16 瀏覽次數(shù):562

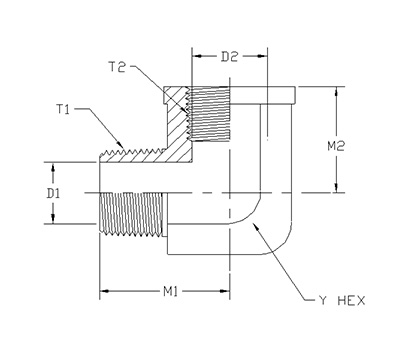

ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 |
1 | 5502-02-02-FG | 0.562 | 1/8-27NPTF | 0.78 | 0.188 | 1/8-27NPTF | 0.66 | 0.315 |
2 | 5502-02-04-FG | 0.75 | 1/8-27NPTF | 0.9 | 0.188 | 1/4-18NPTF | 0.88 | 0.43 |
3 | 5502-04-02-FG | 0.562 | 1/4-18NPTF | 1.09 | 0.281 | 1/8-27NPTF | 0.67 | 0.315 |
4 | 5502-04-04-FG | 0.75 | 1/4-18NPTF | 1.09 | 0.281 | 1/4-18NPTF | 0.88 | 0.39 |
5 | 5502-04-06-FG | 0.875 | 1/4-18NPTF | 1.22 | 0.281 | 3/8-18NPTF | 1.02 | 0.531 |
6 | 5502-04-08-FG | 1.062 | 1/4-18NPTF | 1.28 | 0.281 | 1/2-14NPTF | 1.23 | 0.649 |
7 | 5502-06-02-FG | 0.875 | 3/8-18NPTF | 1.22 | 0.406 | 1/8-27NPTF | 0.8 | 0.315 |
8 | 5502-06-04-FG | 0.875 | 3/8-18NPTF | 1.22 | 0.406 | 1/4-18NPTF | 1.01 | 0.39 |
9 | 5502-06-06-FG | 0.875 | 3/8-18NPTF | 1.22 | 0.406 | 3/8-18NPTF | 1.02 | 0.531 |
10 | 5502-06-08-FG | 1.062 | 3/8-18NPTF | 1.28 | 0.406 | 1/2-14NPTF | 1.23 | 0.531 |
11 | 5502-08-04-FG | 0.875 | 1/2-14NPTF | 1.47 | 0.531 | 1/4-18NPTF | 1 | 0.39 |
12 | 5502-08-06-FG | 0.875 | 1/2-14NPTF | 1.47 | 0.531 | 3/8-18NPTF | 1.02 | 0.57 |
13 | 5502-08-08-FG | 1.062 | 1/2-14NPTF | 1.47 | 0.531 | 1/2-14NPTF | 1.23 | 0.649 |
14 | 5502-08-12-FG | 1.312 | 1/2-14NPTF | 1.59 | 0.531 | 3/4-14NPTF | 1.36 | 0.719 |
15 | 5502-12-08-FG | 1.062 | 3/4-14NPTF | 1.59 | 0.719 | 1/2-14NPTF | 1.23 | 0.649 |
16 | 5502-12-12-FG | 1.312 | 3/4-14NPTF | 1.59 | 0.719 | 3/4-14NPTF | 1.36 | 0.854 |
17 | 5502-16-12-FG | 1.312 | 1-11-1/2NPTF | 1.97 | 0.938 | 3/4-14NPTF | 1.36 | 0.854 |
18 | 5502-16-16-FG | 1.625 | 1-11-1/2NPTF | 1.97 | 0.938 | 1-11-1/2NPTF | 1.62 | 1.08 |
19 | 5502-20-16-FG | 1.625 | 1-1/4-11-1/2NPTF | 2.38 | 1.25 | 1-11-1/2NPTF | 1.62 | 0.938 |
20 | 5502-20-20-FG | 1.875 | 1-1/4-11-1/2NPTF | 2.38 | 1.25 | 1-1/4-11-1/2NPTF | 1.7 | 1.421 |
21 | 5502-24-20-FG | 1.875 | 1-1/2-11-1/2NPTF | 2.64 | 1.5 | 1-1/4-11-1/2NPTF | 1.7 | 1.421 |
22 | 5502-24-24-FG | 2.562 | 1-1/2-11-1/2NPTF | 2.64 | 1.5 | 1-1/2-11-1/2NPTF | 2.08 | 1.657 |
23 | 5502-32-32-FG | 2.812 | 2-11-1/2NPTF | 3 | 1.938 | 2-11-1/2NPTF | 2.39 | 2.13 |
