P系列-5600
發(fā)布日期:2024-01-16 瀏覽次數(shù):507

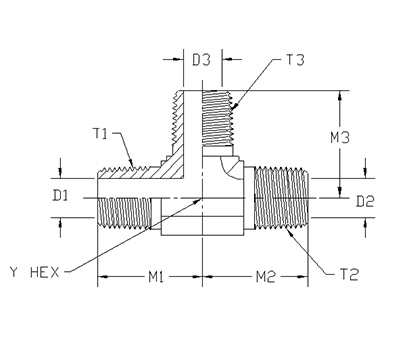

ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 | T3 | M3 | D3 |
1 | 5600-02-02-02-FG | 0.438 | 1/8-27NPTF | 0.78 | 0.188 | 1/8-27NPTF | 0.78 | 0.188 | 1/8-27NPTF | 0.78 | 0.188 |
2 | 5600-04-04-04-FG | 0.562 | 1/4-18NPTF | 1.09 | 0.281 | 1/4-18NPTF | 1.09 | 0.281 | 1/4-18NPTF | 1.09 | 0.281 |
3 | 5600-06-06-06-FG | 0.75 | 3/8-18NPTF | 1.22 | 0.406 | 3/8-18NPTF | 1.22 | 0.406 | 3/8-18NPTF | 1.22 | 0.406 |
4 | 5600-08-08-08-FG | 0.875 | 1/2-14NPTF | 1.47 | 0.531 | 1/2-14NPTF | 1.47 | 0.531 | 1/2-14NPTF | 1.47 | 0.531 |
5 | 5600-12-12-12-FG | 1.062 | 3/4-14NPTF | 1.59 | 0.719 | 3/4-14NPTF | 1.59 | 0.719 | 3/4-14NPTF | 1.59 | 0.719 |
6 | 5600-16-16-16-FG | 1.312 | 1-11-1/2NPTF | 1.97 | 0.938 | 1-11-1/2NPTF | 1.97 | 0.938 | 1-11-1/2NPTF | 1.97 | 0.938 |
7 | 5600-20-20-20-FG | 1.625 | 1-1/4-11-1/2NPTF | 2.38 | 1.250 | 1-1/4-11-1/2NPTF | 2.38 | 1.250 | 1-1/4-11-1/2NPTF | 2.38 | 1.250 |
8 | 5600-24-24-24-FG | 1.875 | 1-1/2-11-1/2NPTF | 2.64 | 1.500 | 1-1/2-11-1/2NPTF | 2.64 | 1.500 | 1-1/2-11-1/2NPTF | 2.64 | 1.500 |
9 | 5600-32-32-32-FG | 2.500 | 2-11-1/2NPTF | 3.00 | 1.938 | 2-11-1/2NPTF | 3.00 | 1.938 | 2-11-1/2NPTF | 3.00 | 1.938 |
