B系列-60-2009
發(fā)布日期:2024-01-09 瀏覽次數(shù):494

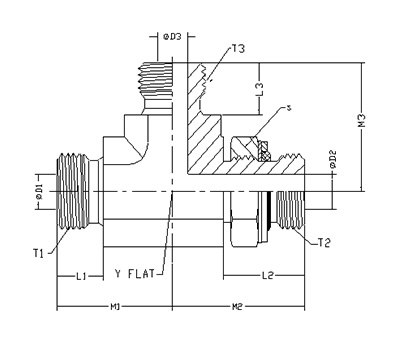

ITEM | P/N | T1 | T2 | T3 | D1 | D2 | D3 | L1 | L2 | L3 | M1 | M2 | M3 | S | Y FLATS |
1 | 2009-04-04-04 | G1/4-19 | G1/4-19 | G1/4-19 | 4.7 | 4.7 | 4.7 | 11.0 | 19.9 | 11.0 | 26.9 | 29.1 | 26.9 | 19.0 | 17 |
2 | 2009-06-04-06 | G3/8-19 | G1/4-19 | G3/8-19 | 7.9 | 4.7 | 7.9 | 12.0 | 19.9 | 12.0 | 30.0 | 33.4 | 30.0 | 19.0 | 22 |
3 | 2009-06-06-06 | G3/8-19 | G3/8-19 | G3/8-19 | 7.9 | 7.9 | 7.9 | 12.0 | 21.0 | 12.0 | 30.0 | 34.4 | 30.0 | 22.0 | 22 |
4 | 2009-08-08-08 | G1/2-14 | G1/2-14 | G1/2-14 | 11.1 | 11.1 | 11.1 | 14.0 | 27.6 | 14.0 | 34.0 | 43.5 | 34.0 | 27.0 | 24 |
5 | 2009-16-16-16 | G1-11 | G1-11 | G1-11 | 22.2 | 22.2 | 22.2 | 19.0 | 33.89 | 19.0 | 46.0 | 55.7 | 46.0 | 41.0 | 41 |
