B系列-60-6001
發(fā)布日期:2024-01-09 瀏覽次數(shù):506

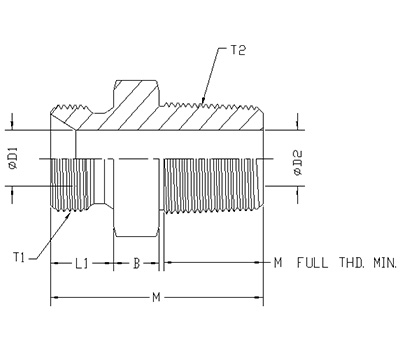

ITEM | P/N | T1 | T2 | D1 | D2 | L1 | M | B | L | HEX |
1 | 6001-08-08 | G1/2-14 | R1/2-14 | 11.1 | 11.1 | 14.0 | 13.2 | 10.0 | 47.0 | 27 |
2 | 6001-12-12 | G3/4-14 | R3/4-14 | 14.5 | 14.5 | 16.0 | 14.5 | 12.0 | 51.0 | 32 |
3 | 6001-16-08 | G1-11 | R1/2-14 | 22.2 | 13.5 | 19.0 | 13.2 | 12.5 | 53.4 | 41 |
