B系列-60-6003
發(fā)布日期：2024-01-09 瀏覽次數(shù)：481

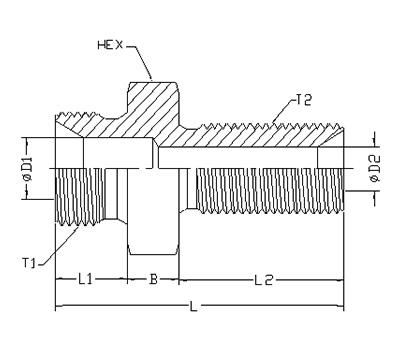

| ITEM | P/N | T1 | T2 | D1 | D2 | L1 | L2 | B | L | HEX |
| 1 | 6003-02-02 | G1/8-28 | G1/8-28 | 3.5 | 3.5 | 8.0 | 28 | 5.0 | 41.0 | 14 |
| 2 | 6003-04-04 | G1/4-19 | G1/4-19 | 6.0 | 6.0 | 11.0 | 28 | 7.0 | 46.0 | 19 |
| 3 | 6003-06-06 | G3/8-19 | G3/8-19 | 7.9 | 7.9 | 12.0 | 32 | 8.0 | 52.0 | 22 |
| 4 | 6003-06-08 | G3/8-19 | G1/2-14 | 7.9 | 11.1 | 12.0 | 35 | 10.0 | 57.0 | 27 |
| 5 | 6003-08-06 | G1/2-14 | G3/8-19 | 11.1 | 7.9 | 14.0 | 32 | 10.0 | 56.0 | 27 |
| 6 | 6003-08-08 | G1/2-14 | G1/2-14 | 11.1 | 11.1 | 14.0 | 35 | 10.0 | 59.0 | 27 |
| 7 | 6003/12/12 | G3/4-14 | G3/4-14 | 14.5 | 14.5 | 16.0 | 38 | 12.0 | 66.0 | 32 |
| 8 | 6003-16-16 | G1-11 | G1-11 | 20.0 | 20.0 | 19.0 | 41 | 12.5 | 72.5 | 41 |
| 9 | 6003-20-20 | G1 1/4-11 | G1 1/4-11 | 28.6 | 28.6 | 20.0 | 44 | 13.5 | 77.5 | 50 |
| 10 | 6003-24-24 | G1 1/2-11 | G1 1/2-11 | 33.3 | 33.3 | 22.0 | 48 | 15.0 | 85.0 | 55 |
| 11 | 6003-32-32 | G2-11 | G2-11 | 46.0 | 46.0 | 25.0 | 48 | 19.0 | 92.0 | 70 |
