B系列-60-6015
發(fā)布日期:2024-01-09 瀏覽次數(shù):523

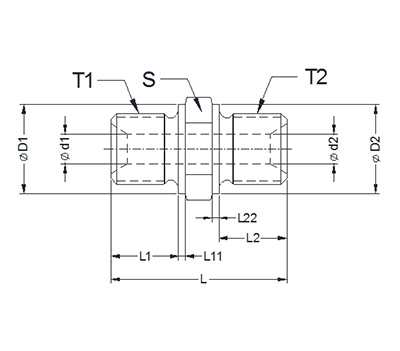

ITEM | P/N | T1 | T2 | D1 | D2 | d1 | d2 | L1 | L2 | L11 | L22 | L | S | 年需求量 |
1 | 00PP-04-04-DIN | G1/4-19 | G1/4-19 | 18.00 | 18.00 | 6.00 | 6.00 | 11.00 | 11.00 | 2.00 | 2.00 | 32.00 | 19 | 500000 |
2 | 00PP-06-06-DIN | G3/8-19 | G3/8-19 | 21.00 | 21.00 | 8.00 | 8.00 | 12.00 | 12.00 | 2.50 | 2.50 | 35.00 | 22 | 500000 |
3 | 00PP-08-08-DIN | G1/2-14 | G1/2-14 | 26.00 | 26.00 | 11.00 | 11.00 | 14.00 | 14.00 | 3.00 | 3.00 | 40.50 | 27 | 300000 |
4 | 00PP-12-12-DIN | G3/4-14 | G3/4-14 | 31.00 | 31.00 | 17.00 | 17.00 | 16.00 | 16.00 | 3.00 | 3.00 | 45.50 | 32 | 150000 |
