B系列-60-6019
發(fā)布日期：2024-01-09 瀏覽次數(shù)：497

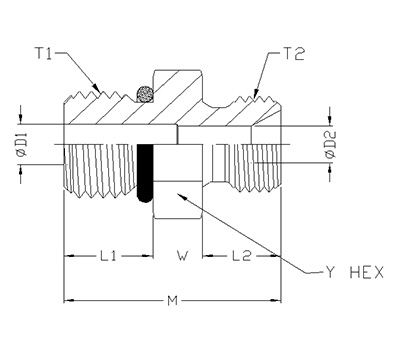

| ITEM | P/N | T1 | T2 | L1 | W | L2 | M | D1 | D2 | HEX |
| 1 | 60-6019-04-04 | 7/16-20 UNF | G1/4-19 | 9.14 | 7 | 11 | 27.14 | 4.37 | 6 | 19 |
| 2 | 60-6019-04-06 | 7/16-20 UNF | G3/8-19 | 9.14 | 8 | 12 | 29.14 | 4.37 | 7.9 | 22 |
| 3 | 60-6019-06-04 | 9/16-18 UNF | G1/4-19 | 9.93 | 7 | 11 | 27.93 | 6.00 | 6 | 19 |
| 4 | 60-6019-06-06 | 9/16-18 UNF | G3/8-19 | 9.93 | 8 | 12 | 29.93 | 7.90 | 7.9 | 22 |
| 5 | 60-6019-08-06 | 3/4-16 UNF | G3/8-19 | 11.13 | 8 | 12 | 31.13 | 9.93 | 7.9 | 22 |
| 6 | 60-6019-08-08 | 3/4-16 UNF | G1/2-14 | 11.13 | 10 | 14 | 35.13 | 9.93 | 11.1 | 27 |
| 7 | 60-6019-10-08 | 7/8-14 UNF | G1/2-14 | 12.70 | 10 | 14 | 36.70 | 12.29 | 11.1 | 27 |
| 8 | 60-6019-12-12 | 1 1/16-12 UN | G3/4-14 | 15.09 | 12 | 16 | 43.09 | 15.47 | 14.5 | 32 |
| 9 | 60-6019-16-16 | 1 5/16-12UN | G1-11 | 15.09 | 12.5 | 19 | 46.59 | 20.00 | 20 | 41 |
